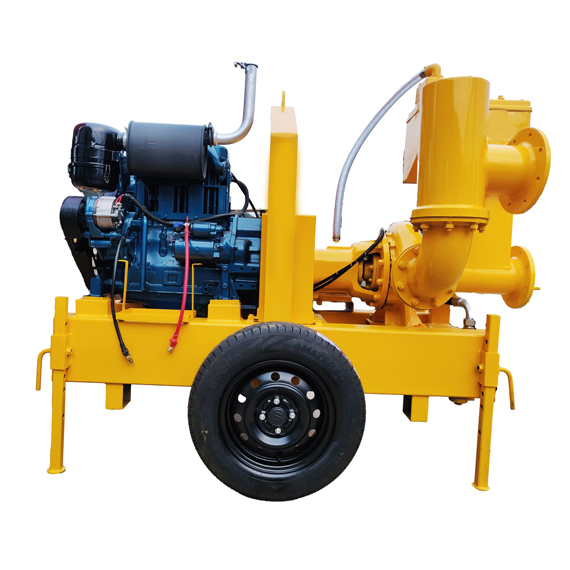

6 inch op type dp
ANX – 150
Description
Pump Details
| Model | ANX – 150 OP |
| Vacuum Capacity | 70 cfm |
| Max.water flow | 350m3/hr |
| Suction x Discharge | 6” x 6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max.suction lift | 9 mtr |
| Max solid handling | 2″ |
| Volute Housing | High Grade cast Iron |
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless Steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS – 304 with Double Mechanical seal immersed in oil bath |
| Mounting | Portable Four wheel chassis with built in fuel tank having a fuel Capacity of 160 liters. |
Engine Details
| Engine | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, Fuel Injection Pump |
